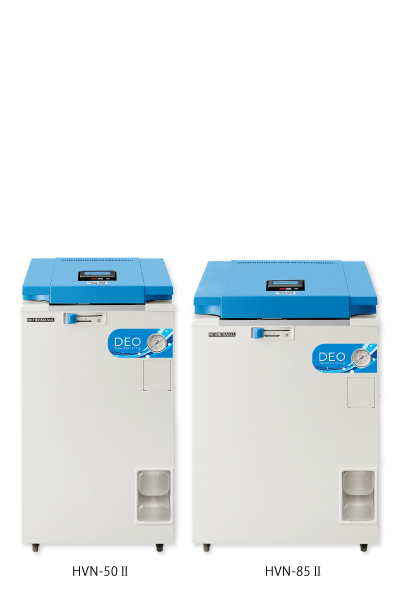

Unique deodorization function has been installed in the HV-II series autoclave
No more worries about vapors that cause unpleasant odors
No more worries about vapors that cause unpleasant odors
HICLAVE
with new deodorization function
HVN-Ⅱseries
with new deodorization function
HVN-Ⅱseries

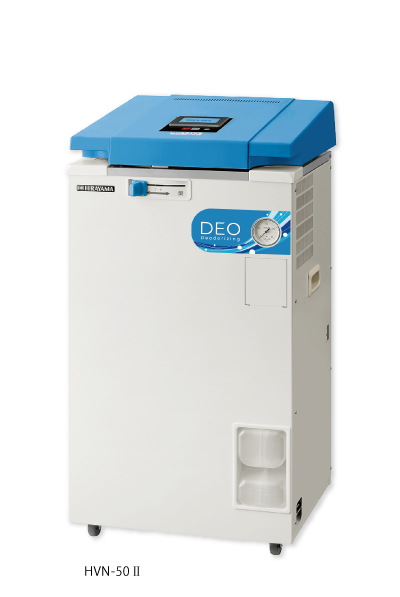

HVN-50Ⅱ
HVN-85Ⅱ

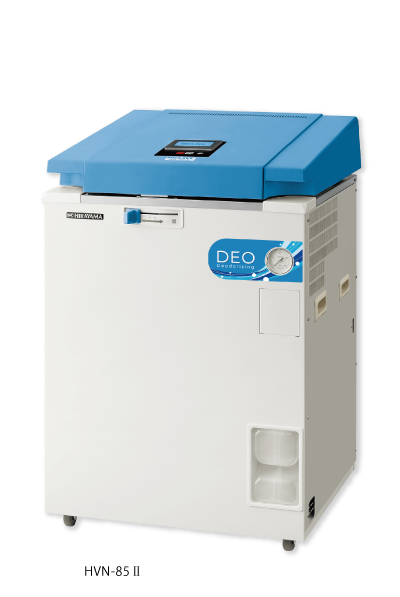

HVN-85Ⅱ
■ Features & Functions
Color touch panel
A color touch panel allows an operator to understand the operation screen contents at a glance.
A color touch panel allows an operator to understand the operation screen contents at a glance.
Deodorization function
Vapors that cause unpleasant odors and float in the air during heating and unloading are reduced, and furthermore, odors are suppressed with a deodorization filter.
※It does not remove the odor of materials to be sterilized.
※Depending on the type of materials to be sterilized, a slight odor may remain.
Vapors that cause unpleasant odors and float in the air during heating and unloading are reduced, and furthermore, odors are suppressed with a deodorization filter.
※It does not remove the odor of materials to be sterilized.
※Depending on the type of materials to be sterilized, a slight odor may remain.
Electro-mechanical lid lock system
The lid can be opened and closed easily and reliably with the one-touch lever.
A pressure seal method is used as a safety measure.
The lid can be opened and closed easily and reliably with the one-touch lever.
A pressure seal method is used as a safety measure.
Dual interlock mechanism
The lid is locked by dually detecting the chamber pressure and chamber temperature during operation.
The lock state is maintained even if an operation is manually interrupted.
The lid is locked by dually detecting the chamber pressure and chamber temperature during operation.
The lock state is maintained even if an operation is manually interrupted.
Memory function
Up to 8 patterns for each mode can be registered according to the purpose of use.
Up to 8 patterns for each mode can be registered according to the purpose of use.
The lid lock release temperature setting
The lid lock release temperature can be set up for each mode or program to secure safety at the time of unloading.
The lid lock release temperature can be set up for each mode or program to secure safety at the time of unloading.
Air removal time setting
It is effective for sterilization of Durham tubes etc. from which air is difficult to escape.
It is effective for sterilization of Durham tubes etc. from which air is difficult to escape.
Dual detection system for residual air
The residual air which may cause sterilization failure is dually detected to always maintain the appropriate sterilization conditions for loads.
※Detection of residual air is performed dually when the chamber pressure is normal (during air removal by gravity displacement) and when the chamber is pressurized (during air removal by pressure exhaust).
The residual air which may cause sterilization failure is dually detected to always maintain the appropriate sterilization conditions for loads.
※Detection of residual air is performed dually when the chamber pressure is normal (during air removal by gravity displacement) and when the chamber is pressurized (during air removal by pressure exhaust).
Forced cooling unit
After sterilization, the chamber pressure is lowered by cooling with a forced cooling unit (air-cool) to shorten the time to unloading.
After sterilization, the chamber pressure is lowered by cooling with a forced cooling unit (air-cool) to shorten the time to unloading.
Programmable auto-start function
An operation starts at the set time.
※The operation start time can be set up to 1 week later.
An operation starts at the set time.
※The operation start time can be set up to 1 week later.
Required utilities
・Power supply:Refer to the specifications. Household outlets are not recommended.
※Ask us for details.
・Power supply:Refer to the specifications. Household outlets are not recommended.
※Ask us for details.
■ Consumables
| Deodorization filter for HVN |
|---|
 |
| For HVN-50Ⅱ：1 set For HVN-85Ⅱ : 2 sets |
■ Easy to use with color touch panel
| A color touch panel allows an operator to understand the operation screen contents at a glance. | |
|---|---|
 |
| Confirmation items are notified at startup. | A mode can be selected simply by touching the screen. |
|---|---|
 |  |
| When the power is turned on, the confirmation items before use is displayed.You can reduce the trouble by implementing the confirmation items. | A mode can be selected with the simple operation of touching the desired mode from 5 modes displayed on the color touch panel and pressing the start button. |
| Color display makes it easier to understand various settings. | |
|---|---|
| The settings of temperature, time, warming and exhaust can be easily changed by touch operation while checking the color screen.The set contents can be registered up to 8 patterns. It is very convenient when sharing and using with a plurality of names. | |
 Sterilization temperature setting range |  Registration and selection of memory |
| Security & Safety: Maintenance information is also notified. | |
|---|---|
| Various information such as settings, maintenance, safety and warnings are displayed on a color screen.More detailed contents are shown by text information. | |
 [ Maintenance information ] Notification of periodic self inspection, power failure,cycle count , etc. |  [ Alarms ] 11 kinds of alarms such as a low water heating alarm are displayed. |
 [ Alarm history ] Alarm occurrence date, alarm contents and stage ID number are displayed. |  [ System information ] Program version number, cycle count, next self inspection date are displayed. |
■ Operation cycle of each mode (Up to 8 patterns for each mode can be registered.)
| LIQUID mode |  | Heating | | Sterilization | | Variable exhaust | ||
|---|---|---|---|---|---|---|---|---|
| ●Main applications: Sterilization of liquid, which can withstand high temperature and high pressure steam such as water, culture medium, reagent, reagent solution, liquid medicine, etc. | ||||||||
| SOLID mode | | Heating | | Sterilization | | Forced exhaust | ||
| ●Main applications: Sterilization of instruments made of glass, ceramic, metal or rubber that can withstand high temperature, high pressure steam and rapid pressure reduction during exhaust. | ||||||||
| WASTE mode | | Heating | | Sterilization | | Deodorization Forced exhaust | ||
| ●Main applications: Sterilization of waste using a sterilization bag and the like. | ||||||||
| AGAR mode | | Heating | | Sterilization | | Variable exhaust | | Warming |
| ●Main applications: Sterilization of agar medium (It is warmed at constant temperature to prevent clotting after sterilization.) | ||||||||
| DISSOLUTION mode | | Heating | | Warming | ||||
| ●Main applications: Dissolution of agar medium (It is warmed at constant temperature to prevent clotting after heating.) | ||||||||
■ Options for upgrading a system
| Recorder | Core temperature sensor |
|---|---|
 |
|
| Chart type recorder: 6-point dotting ※Chart width: 100 mm ※Class 2 T-type thermocouple included |
Class 2 T-type thermocouple ※Connection with recorder is required |
| Floating sensor | Printer |
|---|---|
 |
 |
| A sterilization timer operates after the temperature of the materials. | ※Thermal print type |
■ Option
| Stainless steel round wire basket | Stainless steel sterilization bucket (without hole) | Stainless steel sterilization bucket (with holes) | Stainless steel round wire basket with solid bottom |
|---|---|---|---|
 |
 |
 |
 |
| [For HVN-50Ⅱ] φ270 x H220 mm φ270 x H270 mm [For HVN-85Ⅱ] φ380 x H285 mm |
[For HVN-50Ⅱ] φ270 x H220 mm φ270 x H270 mm [For HVN-85Ⅱ] φ390 x H285 mm |
[For HVN-85Ⅱ] φ390 x H375 mm |
It is recommended to use when using a sterilization bag. A large capacity and bucket-shape bottom can prevent the chamber from being contaminated when a sterilization bag is broken. [For HVN-50Ⅱ] φ270 x H600 mm ※Use a sterilization bag without closing the mouth. |
| Special sterilization bucket for medical waste | Detergent for autoclave | Sterilization bag |
|---|---|---|
 |
 |
 |
It is useful for sterilizing injection needles, pipettes, etc. that have sharp tips. Made of aluminum, with handle [For HVN-50Ⅱ] φ270x520mm ¥52,800 |
Detergent to remove culture media, water scale sticked to the inside of a chamber [Standard amount of use] 1 cap of detergent in 2 L of water (20 ml・1%) ※Take out the materials at the time of use. 500 ml |
Special structure reinforced film. Heat resistant temperature is 130℃. [Type：A] 200 pcs 500 x 700 mm [Type：B] 200 pcs 620 x 820 mm ※Use it without closing the mouth. |
| Sterilization tape, Sterilization label, Sterilization bag |
|---|
 |
| ■Sterilization tape: Clear color change makes it easy to identify exposure to sterilization process. ■Sterilization label: Paste directly on the object to be sterilized, you can check the sterilization treatment. After sterilization, the letters "sterilized" appear and it can be easily distinguished from untreated materials. ■Sterilization bag: There are sterilization bags that are made of paper, roll type or one seal back type. Most of them are heat seal type, but tape seal type and aluminum plate seal type can be also available. ※Ask us for prices and more details. |
■ Specifications
| Product name | HICLAVE HVN-Ⅱ | ||
|---|---|---|---|
| Model | HVN-50Ⅱ | HVN-85Ⅱ | |
| Effective capacity | 50 L | 85 L | |
| Chamber size (φ x H mm) | 300 x 710 | 420 x 615 | |
| Operation mode | 5 modes (LIQUID, SOLID, WASTE, AGAR, DISSOLUTION) ※Settings can be registered in 8 memories. | ||
| Temperature setting range | Sterilization | 105℃ - 135℃ Variable | 105℃ - 128℃ Variable |
| Dissolution | 60℃ - 100℃ Variable | ||
| Warming | 45℃ - 60℃ Variable | ||
| Lid lock | LIQUID, AGAR, DISSOL modes: 60℃ - 95℃ Variable / SOLID, WASTE modes: 60℃ - 97℃ Variable | ||
| Time setting range | Sterilization | 1 min - 250 min, Remaining time is displayed | |
| Dissolution | 1 min - 60 min, Remaining time is displayed | ||
| Warming | 20 h, fixed | ||
| Auto-start | Program autoclave to start 1 min to 1 week later | ||
| Air removal | 3 min- 9 min Variable | 6 min - 18 min Variable | |
| Exhaust setting | 3 levels (Without exhaust, Fine exahut, Small amount of exhaust) | ||
| Maximum working pressure | 0.255MPa | 0.196MPa | |
| Thermometer | Digital display 5.0℃ - 137.9℃ | Digital display 5.0℃ - 130.9℃ | |
| Pressure gauge | Digital display 0MPa - 0.3MPa / Analog display 0MPa - 0.4MPa | ||
| Safety devices | Pressure safety valve, Over-current and earth leakage breaker, Low water cut off device | ||
| Alarms, error display | Low water heating, Temperature sensor wire disconnection, Over-temperature, Over-cool, Over-pressure, Lid abnormality, Abnormality in lid opening / closing lever |
||
| Outside dimensions (W x D x H mm) | 547 x 532 x 1046 | 667 x 652 x 1026 | |
| Weight (Approximately) | 65 kg | 93 kg | |
| Pressure vessel category | Small sized pressure vessel | ||
| Chamber material | Stainless steel (SUS304) | ||
| Power supply | AC100V (2.0kW) 20A | AC200V (4.0kW) 20A | |
| Required power supply facility | 単相AC100V (50/60Hz) 20A以上 ※125V15Aコンセントは非推奨 | 単相AC200V (50/60Hz) 20A以上 | |
| Power connection |  Ring terminal | ||
| Supplied accessories | Bottom plate, Drainage hose, Exhaust hose, Exhaust bottle, Drain bottle, Caster stopper (2) | ||
| Medical device category | Controlled medicl device, Controlled medical device requiring special maintenance management | ||
| Medical device certification number | 231AABZX00001000 | ||
※Specifications and appearance are subject to change without notice due to continuous product improvement.
