| ■VERTICAL AUTOCLAVES |  |
||
| Please click `Brochure request` if needed. | |||
 |
 |
HICLAVE The autoclaves suitable for ordinary use |
|
User-friendliness has been remarkably improved with the color LCD touch panel. |
|
| Newly developed HV-Ⅱseries & HV-ⅡLB series autoclaves |
|
|
ClassⅡ controlled medical devices |
|
| For laboratory use HV-25ⅡLB/50ⅡLB/85ⅡLB/110ⅡLB |
| Features |

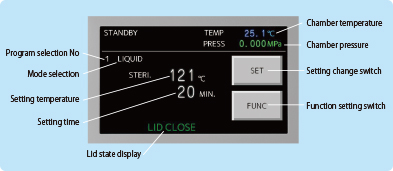

| Easy-to-Operate with Color Touch panel |
| A color touch panel allows an operator to select an operation screen at a glance. |
 |
| A mode selection is easy. | A color screen is easy to read when setting temperature, time, warming or exhaust. | |
| A mode selection is easy. Touch the screen to select adesired mode form five modes shown on the screen then press the START button. | The settting cange of temperature, time, warming or exhaust is easily carried
out by means of touch operation while checking a color screen. The setcontents are registered up to 8 patterns. It is convenient when sharing and utilizing them with other people. |
|
 |
 |
 |
| Mode selection | Sterilization temperature setting | Program registration / selection |
| Maintenance information is also displayed. Reliable & Safe! |
|||
| Various information including settings, maintenance, safety or alarms is displayed on a color screen. Detailed contents are provided by the character information. | |||
 |
 |
 |
 |
| Maintenance info | Alarms | Alarm history | System information |
| Notification of periodic self inspection,power failure, cycle count, etc. are displayed. | Date of generation, alarm contents, stage ID number are displayed. | Program version No., cycle count, next self inspection date are dsiplayed. | |
| Unique functions considering safety |
| Electro-mechanical lid lock system | Dual interlock mechanism | |
| A lid is locked not by a handle but by a slide lever that can be operated
lightly. So, opening / closing of a lid is easy and reliable. In addition,
the pressure seal method consisting of an internal pressure type lid gasket
and several lock pins which insert from the lid circumference surface is
employed for safety. |
The dual interlock mechanism
which can lock a lid by detecting both chamber pressure and chamber temperature
during sterilization is installed. A lock state is maintained even when a cycle
is interrupted by power failure or manual stop operation. |
|
   |
Lid lock release temperature setup | |
|
The lid lock release temperature can be set up for each mode and
program. Safety and convenience at the time of unloading is improved. |
||
| Functions to support secure sterilization |
| Dual sensing of residual air | Exhaust level is selectable |
| The residual air which may cause sterilization failure is dually
detected to always maintain the sterilization conditions that are appropriate
for loads. ※Air removal is performed not only by gravity displacement but also by over-pressure exhaust, and the residual air is detected dually. |
The automatic fine exhaust can be
performed by setting the exhaust amount in advance. |
| Forced cooling device (option) | |
| After sterilization, the chamber pressure is lowered by using the forced
cooling device (air cooling). It is possible to shorten time to unloading after sterilization. |
| Functions to improve usability |
| Air removal time setup | Programmable auto-start function |
| The air removal time that is effective for sterilization of such objects as Durham tubes can be set up. | The programmable auto-start function that starts anoperation at the set time is provided. |
|
HV-25Ⅱ/25ⅡLB, HV-50Ⅱ/50ⅡLB: Any time between 3-9 minutes HV-85Ⅱ/85ⅡLB, HV-110Ⅱ/110ⅡLB: Any time between 6-18 minutes |
Boiling point setup |
| You can change the boiling point setup when using equipment at a place
which exceeds 800 meters above sea level. (Excluding HV-25Ⅱ and HV-25ⅡLB) |
|
| Memory function | |
| A program which is set for each application can be registered up to 8 patterns. |
| Model | HV-25Ⅱ | HV-25ⅡLB | HV-50Ⅱ | HV-50ⅡLB |
| Classification by uses ※ | MD | LB | MD | LB |
| Outside dimension (WxDxH mm) | 485 x 470 x 949 | 547 x 532 x 1046 | ||
| Weight (approx.) | 44 kg | 60 kg | ||
| Chamber size (ΦxD mm) | 240 x 550 | 300 x 710 | ||
| Effective capacity | 25 L | 50 L | ||
| Sterilization temperature range |
105 - 126℃ variable | 105 - 135℃ variable | ||
| Power source (heat source) |
110/120/220/230/240VAC, 50/60Hz | |||
|
Medical
device certification |
O | - | O | - |
|
Class ⅡControlled |
O | - | O | - |
| Controlled
medical device requiring special maintenance |
O | - | O | - |
|
EMC
conformity |
O | - | O | - |
| Model | HV-85Ⅱ | HV-85ⅡLB | HV-110Ⅱ | HV-110ⅡLB |
| Classification by uses ※ | MD | LB | MD | LB |
| Outside dimension (WxDxH mm) | 667 x 652 x 1026 | 667 x 652 x 1206 | ||
| Weight (approx.) | 83 kg | 89 kg | ||
| Chamber size (ΦxD mm) | 420 x 615 | 420 x 790 | ||
| Effective capacity | 85 L | 110 L | ||
| Sterilization temperature range |
105 - 135℃ variable | |||
| Power source (heat source) |
220/230/240VAC, 50/60Hz | |||
|
Medical
device certification |
O | - | O | - |
|
Class ⅡControlled |
O | - | O | - |
| Controlled
medical device requiring special maintenance |
O | - | O | - |
|
EMC
conformity |
O | - | O | - |
| ※Classification by uses → MD : For medical use, LB : For laboratory use | ||||
|
|
|
|
|
|
||
 |
